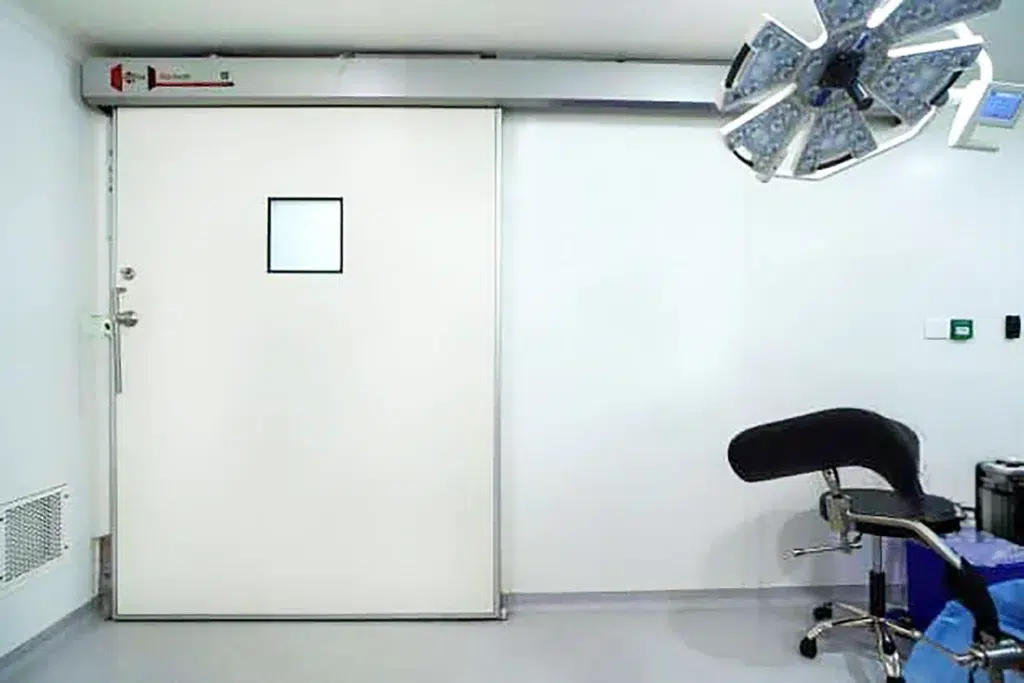

MAK Health Lead Line Sliding

These Lead Line doors have been specially developed for operation theatres with X-ray equipment, Cath Labs as well as rooms with radiation shielding requirements.

  • Sliding door system
  • Airtight/ hermetically sealing
  • Completely smooth finishing
Request advice

The equipment inside the X-ray rooms must be kept in adequately shielded rooms to ensure that the public in the X-ray installations are not unduly exposed to the radiations. The unsought situation of leakage of these harmful radiations outside the X-ray room is highly critical situation and would be the nightmare for any hospital. This will expose the public to highly dangerous and harmful radiations.



But thankfully, with Metaflex lead shielded doors, it is impossible to witness any leakage outside the radiation room. Metaflex lead line doors, conform to AERB regulations and ensures complete lead sealing. These Lead Line doors have been specially developed for operation theatres with X-ray equipment, Cath Labs as well as rooms with radiation shielding requirements.

Show more Show less

Options

The MAK Health Lead Line Sliding offers the following options:

Airtight
Door system is airtight
Noise reducing
Door system can be made noise-reducing
Radiation-proof
Door system can be made radiation-proof
Smoke-proof
Door system is smoke-proof
Smooth finishing
Door leaf has a completely smooth finishing

Product specifications

Type
Sliding door
Operation
Automatic, Manual
Door leaf
The door leaf has thickness of 60mm with PIR core (CFC free) with high-pressure laminate (HPL) on both sides confirming to EN 438-4:2016. The door profile are flushed with door leaf in Aluminium Alloy, Grade 6063, Temper T6 natural anodized finish. The door leaf and profiles have 2mm lead inlays for radiation proofing (Pb 99,94 Cu according to DIN EN 17640).
Sealing gasket
Easily replaceable all around EPDM gasket. When closed, the EPDM gasket is pressed against the frame to make sure perfect sealing.
Vision panel (Optional)
Insulated tempered glass unit 5mm thick on both sides with Lead Glass Flushed with door surfaces. 2mm equivalent at 150kVp.
Lever handle
Solid AISI 304 Grade Stainless Steel
Rail
Low noise aluminium rail construction with 45° indentations with simultaneous “down and in” movement.
Wall frame
Aluminium Alloy, Grade 6063, Temper T6 Natural Anodised, 20 μm with 2mm thick lead inserts.
Noise insulation
28 db certified
Air permeability
Certified Air tightness to an overpressure of upto 100 Pa
Show more Show less
