Sliding Door Automation

The SDA-05 sliding door automation represents the next step in the development of automatic sliding doors and builds on the proven performance of its predecessor, the SDA-04. The system is designed for applications where safety, reliability and flexibility are essential.

With a strong focus on EN 16005-compliant safety, seamless integration with building systems and user-friendly configuration, the SDA-05 is suitable for a wide range of environments, including healthcare, cleanrooms and utilitarian buildings.

Its modular design and low-maintenance construction contribute to long service life and stable performance in intensively used applications.

Would you like to see how the SDA-05 improves efficiency and ease of use in your building? View the videos and images alongside this page for a first impression. We are happy to help you find the right solution for your application.

Request customized advice Download Product Sheet
Sliding Door Automation
Sliding Door Automation Sliding Door Automation Sliding Door Automation Sliding Door Automation Sliding Door Automation Sliding Door Automation Sliding Door Automation

Information

Ease of use and configuration

The SDA-05 is equipped with an innovative auto-setup function that adapts and learns over time. The automation continuously optimises its operation based on door behaviour, ensuring stable and reliable performance in daily use.

Settings and transferability

All settings can be fully adjusted via intuitive software tools, allowing configurations to be tailored to specific requirements. These settings can be saved and transferred to other SDA-05 controllers, ensuring consistency across multiple installations.

Integration and connectivity

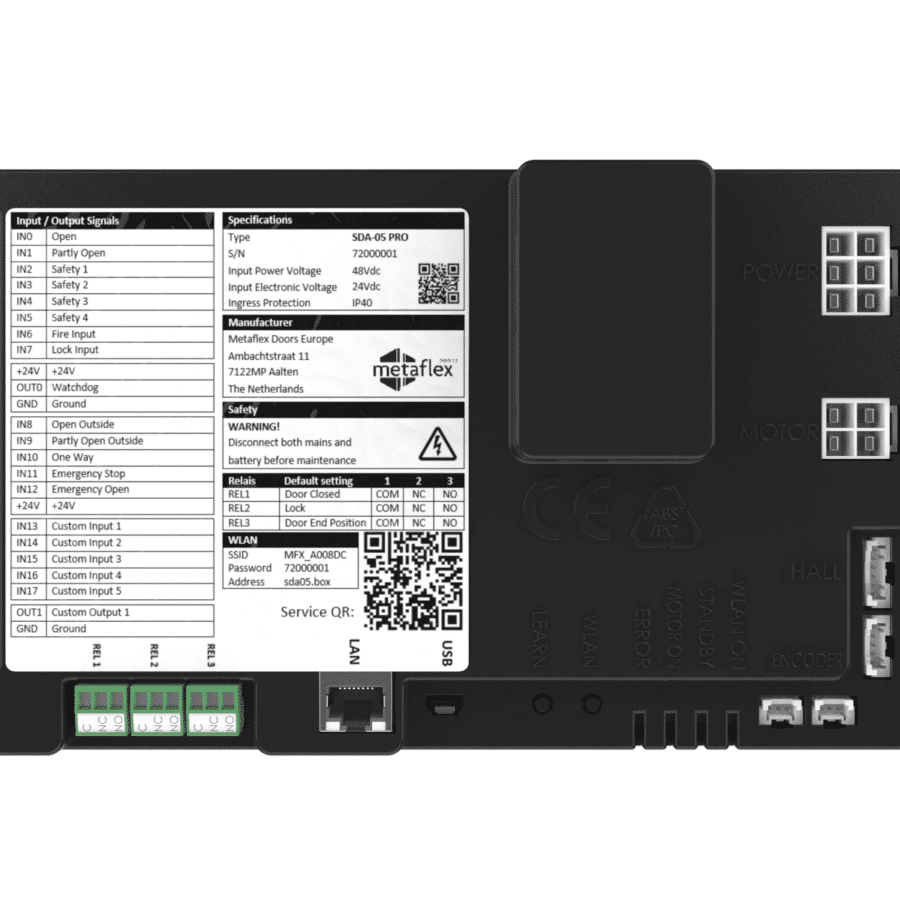

Thanks to versatile connectivity options such as WLAN, USB, CAN and LAN, the SDA-05 can be seamlessly integrated into existing building management systems. The automation also features multiple inputs and outputs with predefined standard configurations, providing flexibility for various applications.

Relays and application flexibility

The SDA-05 is equipped with three relays, each offering a choice of 15 configuration settings. This enables flexible use of the automation for functions such as interlocking, signalling or integration with external systems.

Safety in accordance with EN 16005

The SDA-05 complies with the safety requirements of EN 16005, with user protection as a core principle. The automation is designed for safe operation in intensively used environments.

Automatic detection and safety sensors

The system features automatic detection and periodic testing of safety sensors, ensuring continuous monitoring of correct sensor operation and reliable safety performance over time.

Obstacle detection with Deceleration Measurement System (DMS)

Thanks to the Deceleration Measurement System (DMS), the door stops immediately and reverses in a controlled manner when an obstacle is detected, effectively reducing potential risks.

Housing and safety in medical environments

The SDA-05 is fitted with a non-flammable plastic housing, further enhancing safety. This is particularly relevant in environments requiring medical grounding, where fire risk must be minimised.

Downloads

Frequently Asked Questions

The SDA-05 is designed for intensively used sliding doors in environments such as healthcare, cleanrooms, distribution centres and food processing facilities. The automation is suitable for single and double sliding doors and supports door weights of up to 600 kg, including hermetically sealing door systems.

The SDA-05 PRO is specifically developed for healthcare applications and offers extended connectivity options. Compared to the standard SDA-05, the PRO version includes additional inputs and outputs, multiple relays, LAN connectivity and extra CAN connections, enabling easier integration with interlocking systems and building management systems.

Yes. The SDA-05 is designed to operate hermetically sealing sliding doors reliably. The automation provides sufficient force to lift doors weighing up to 600 kg out of their sealing profiles and to close them in a controlled manner, which is essential for airtightness, hygiene and pressure control.

The SDA-05 complies with the EN 16005 safety standard and incorporates multiple safety features. The system automatically detects and tests safety sensors and uses the Deceleration Measurement System (DMS) to stop and reverse the door immediately when an obstacle is detected.

The automation features an auto-setup and self-learning function, enabling quick commissioning. Settings can be adjusted via software or a web interface and easily saved and transferred to other SDA-05 controllers. The interface is available in Dutch, English, German and French.

Yes. The SDA-05 supports WLAN, USB, CAN and LAN connectivity. The SDA-05 PRO in particular enables integration with building management systems and supports interlocking of up to 10 doors, making it suitable for controlled environments such as healthcare and cleanrooms.
?>
