Mak Health Neo Lead Line Sliding Doors

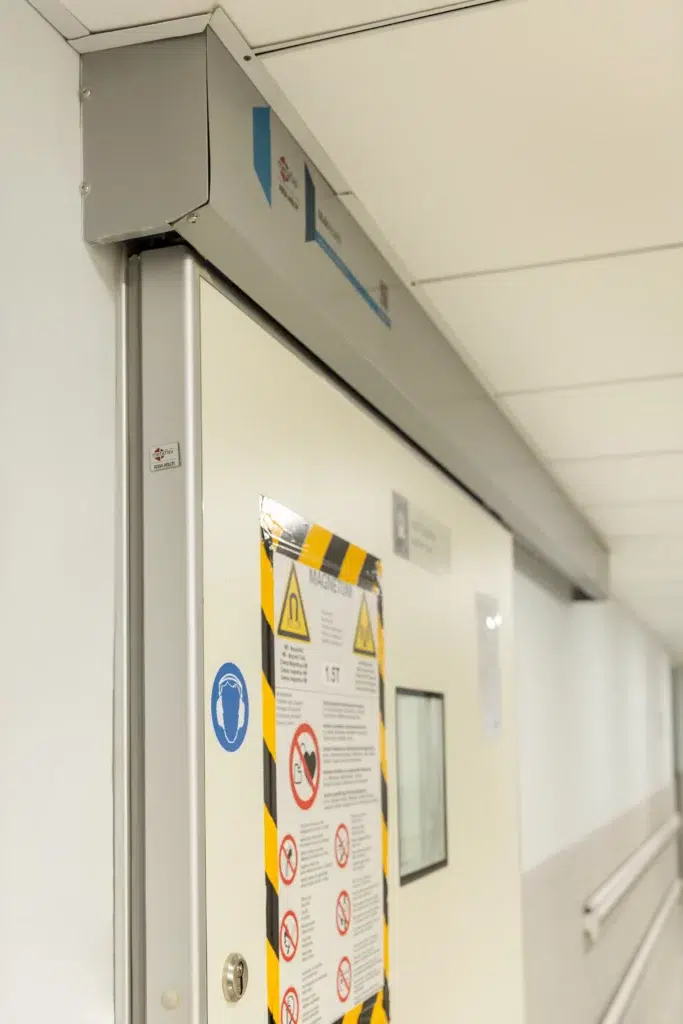

The Mak Health Neo Lead-Lined Sliding Door is a 100% hermetically sealed, CE-certified sliding door system designed specifically for healthcare environments where radiation protection and infection control are critical. Ideal for X-ray rooms, Cath labs, diagnostic imaging suites, radiology departments, and other controlled radiation areas, these doors provide effective radiation shielding while supporting sterile and pressure-controlled environments.

CE certified by TUV India – CE compliance is as per machinery directive, EMC directive and EN 16005
Air permeability: Class D, EN 12207
2mm Lead inlay

Find the contact person

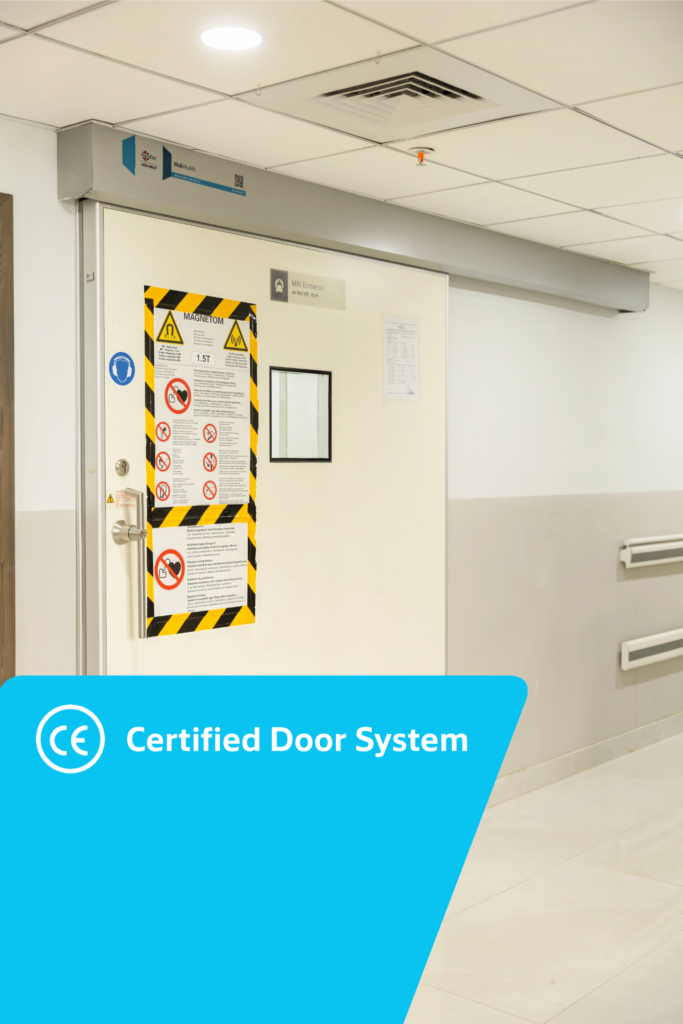

100% hermetically sealed, CE-certified door system
Conforming to AERB regulations
Can withstand up to 100Pa overpressure.
60mm thick door panel with 4mm thick HPL on both sides.
Radiation resistant / lead inlay X-Ray – 1 to 2 mm lead equivalent
View port – Optional (2 mm lead eq.)
Durability: 5,00,000 cycles.
Sound insulation up to 39 dB as per ISO 717-1

The MAK Health Neo Lead-Lined Sliding Door is engineered to help prevent radiation leakage while maintaining required pressure differentials within critical radiation areas. Its hermetically sealed design contributes to cleaner indoor environments, improved patient safety, and enhanced operational efficiency. Conforming to AERB regulations, the system is available with radiation-resistant lead inlay options from 1 mm to 2 mm lead equivalent for enhanced X-ray protection. Optional lead-lined view ports and advanced automation further improve functionality and safety.

Engineered to comply with EN 12207 air permeability standards, the MAK Health Neo door minimizes both radiation and air leakage, helping healthcare facilities maintain stringent safety, hygiene, and operational requirements.
